Breslmair rim trumpet/flugelhorn silver plated for module system

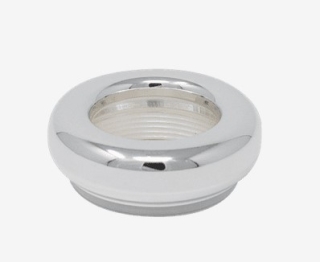

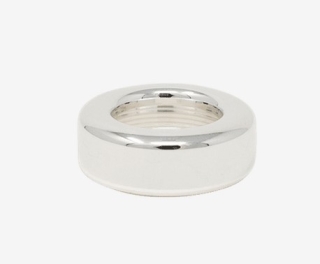

optionally randform Berlin or Vienna
Edges for modular systems 2- / 3-part Breslmair. Trumpet and flugelhorn
Model W
Outside diameter: 29,000 mm
Nominal diameter: 16.706 mm
Wide rim for greater endurance
Model VC2
Variation of V, sharper inner edge R1.389
Outside diameter: 27.315 mm
Nominal diameter: 16.875 mm
Model VC1
Variation of V, sharper inner edge R1.452
Outside diameter: 27.315 mm
Nominal diameter: 16.867 mm
Model V16
Edge shape V suitable for module cup 16.0mm
Outside diameter: 26.915 mm
Nominal diameter: 16.477 mm
Model v
Outside diameter: 27.315 mm
Nominal diameter: 16.877 mm
Contour according to Bach 11/4 C, modified
Model T6
Rand Schantl T6
Outside diameter: 27.414 mm
Nominal diameter: 16.646 mm
Model S
Outside diameter: 27,500 mm
Nominal diameter: 16.690 mm
Model R
Rand Prof. R. Rudolf († 1995) (Wiener Symphoniker)
Outside diameter: 27,700 mm
Nominal diameter: 15.973 mm
Model L
Outside diameter: 27.376 mm
Nominal diameter: 16.754 mm
Model K
Outside diameter: 28,000 mm
Nominal diameter: 16.722 mm
Inside edge towards edge G, outside wider, steeper
Model H.
Outside diameter: 27.432 mm
Nominal diameter: 16.829 mm
Contour according to Bach 11/2 C, modified
Model GWi (GW5)
Outside diameter: 27.769 mm
Nominal width: 17.020 mm
Cup width 16,500 mm
Edge contour GW
larger inside width
Model GW
Original shape of the edge G
Cup width: 16.40 mm
Outside diameter: 27.50 mm
Nominal diameter: 16.752 mm
Model G
Outside diameter: 27,500 mm
Nominal diameter: 16.718 mm
Edge of the complete mouthpiece row G
GT model
Edge by Gabor Tarkövi
Model EL
Outside diameter: 27.446 mm
Nominal diameter: 16.328 mm
Model E4-G
Outside diameter: 27.626 mm
Nominal diameter: 16.633 mm
Edge Yamaha 15E4
Model B.
Outside diameter: 29,000 mm
Nominal diameter: 16.551 mm
Wide margin, round contour, pleasant
Model a
Cup width: 16.40
round contour, according to the old shape knife A
Model 7C
Outside diameter: 27.003 mm
Nominal diameter: 16.954 mm
Edge Bach 7C
Model 6C
Model 5C
Model 4X
Outside diameter: 28.199 mm
Nominal diameter: 16.448 mm
Model 3C
Outside diameter: 27,300 mm
Nominal diameter: 16.824 mm
Bach 3C Mt. Vernon
Model 3
Outside diameter: 27.220 mm
Nominal diameter: 16.694 mm
Rand Bach number 3
Model 2
Outside diameter: 27.496 mm
Nominal diameter: 16.693 mm
milder inner edge than 1
Model 1C-G
Outside diameter: 27.330 mm
Nominal diameter: 17.163 mm
Edge Bach 1 C
Model 17
Outside diameter: 27.457 mm
Nominal diameter: 16.910 mm
Rand Schilke 17
Model 114-i
Outside diameter: 27.498 mm
Nominal diameter: 16.994 mm
Edge Bach 1 1/4 C
Model 112
Outside diameter: 27.200 mm
Nominal diameter: 16.645 mm
Edge Bach 11/2 C
Model 1
Outside diameter: 27.496 mm
Nominal diameter: 16.693 mm
Model V2
Contour according to Bach 1¼C, modified
Outside diameter: 27.115 mm
Nominal diameter: 16.677 mm
Model ST
Outside diameter: 27.408 mm
Nominal diameter: 16.706 mm
Cup width: 16.40 mm
Model G2B
Archetype of edge G,
Outside diameter: 27.450 mm
Nominal diameter: 16.720
Model BB
Outside diameter: 27.890 mm
Nominal diameter: 16.096 mm
Rim of a piccolo mouthpiece, broad
Model 7E
Outside diameter: 27,700 mm
Nominal diameter: 15.974 mm
Model 7D
Outside diameter: 27.950 mm
Nominal diameter: 15.974 mm
corresponds to Bach 7DW Mt. Vernon
